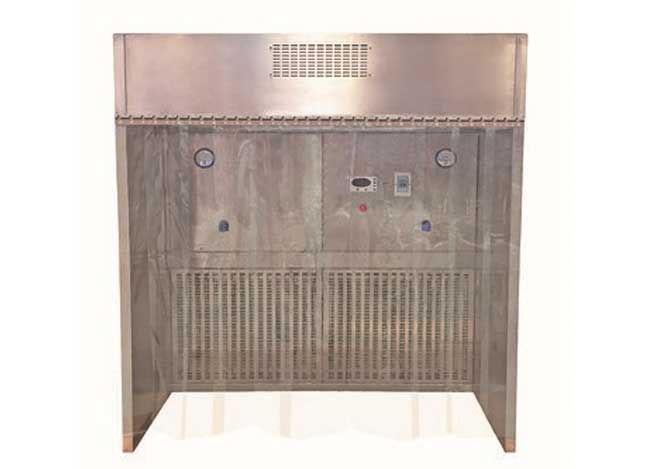

Dispensing booth for pharmaceutical is a kind of partial purifying equipment for filling, refilling, weighing and sampling of raw material and compounds. It is provided with HEPA filter, which prevents the airborne dusts by down draught technique.

    Dispensing & Sampling Booth:

  • Flame Protection : FLP / Non-FLP
  • Size : Standard Sizes 2 x 1 , 2 x 2 , 2 x 3 feet ( Or As per Customer Requirement)
  • Material of Construction : CRCA Powder-coated /SS 304 / SS 316 L

Sampling Booth has been designed to provide a Class 100 working environment at rest, with built-in scavenging system to ensure protection for the product, operator and surrounding environment.

  • Imported Minipleat HEPA Filter with hot melt technology, which confirms to EU 13 Grade, with an efficiency rating better than 99.99% for 0.3μ at supply position
  • Prefilter confirms to EU 4 Grade, with efficiency of 90% down to 10µ. These Filters are basically made from micro-fibre-glass media and are inherently washable
  • Intermediate filter which confirms to EU 7 Grade, with efficiency of 95% down to 3µ. These Filters are basically made from micro-fibre-glass media and are inherently washable
  • Motor Blower provided are statically and dynamically balanced, Supply of sufficient capacity and static pressure is used to take care of airflow requirement for entire life of HEPA. The blower is high-performance, noise abated, light weighted statically and dynamically balanced
  • SS 304 Double Walled Side Panels
  • Differential Pressure Gauge HEPA filter. To monitor pressure drop across PRE Filter with respect to ambient
  • Electrical control panel mounted on the side panel of the unit
  • Tube Light
  • ON/OFF Switches for motor
  • 6 / 16 Amp single-phase switch socket for external equipment
  • DOP Test port at upstream of HEPA filter
